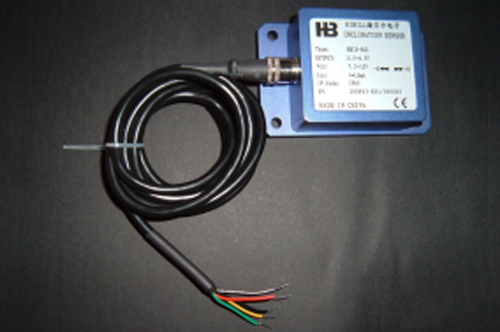

HBIS-S01 Features:

Full digital design of advanced acceleration sensor, application specific integrated circuit (ASIC),and micro controller (MCU). Factory calibrated with temperature compensation within full scale; Full linearization compensated; High sampling rate and bandwidth; Wide Operating Temperature Range; Robust, easy to Install and Maintain with Low Cost;Optional surface anodic oxidation colors or customized;

HBIS-S01 is a measuring tools equipment and instrumentation widely used in Road Engineering, Mechanical Measurement, Construction Works, Industrial Platform, Oil Exploration, Mapping, Military, Ship, and many related fields needed to measure the inclination or the levelness under gravity reference system.

Specifications:

Measuring Dimension        Single-axis( Horizontal or vertical optional).

Measuring Range                ±5°, ±10°, ±15° or ±20°(optional).

Resolution                           0.01° or 0.1°(optional).

Measuring Accuracy       ±0.5°, ±0.3° or ±0.2°@２５℃±３℃(optional).

Repeatability             ≤±0.01° or ≤±0.1°of full Measuring Range(optional).

Temperature Drift             ±0.5°, ±0.3°, or±0.2°@２５℃±３℃(optional).

Operating Temperature     -5℃～50℃, -20℃～65℃ or -40℃～85℃(optional).

Storage Temperature      -40℃～85℃, -60℃～90℃ or -40℃～125℃(optional).

Relative Humidity                ≤90% without coagulated dew

Response Time                             ≤500ms

Analog Output                    0～5V or 4～20mA(optional).

Digital Output    SPI, UART, RCS232, RS485, CAN2.0B or CANopen(optional),

Optional "Inclination Data Collection and Communication Software"

Power Supply   5~12VDC,24VDC,10~30VDC,9~36VDC(optional or customized).

Current Drain                               ≤15mA

Housing               Max.size L:90mm, W:58mm, H:31mm;  Aluminum alloy.

Outlet tail(Circular Connector)D:Φ11.4mm, L:8mm.

Degree of Protection                  IP65～IP68 (optional).

Surface Colors          3 optional colors: Blue,Orange,Black, or customized;

                                    Anodic oxidation coloring.
