HBIR2816 Features:

Full Digitized Design, More stable optical and mechanical structure,  Factory Calibrated with Temperature Compensation within Full Scale, Wide Operating Temperature Range, Optional or Customized various Digital/Analog signal output, Easy to Install and Maintain with Low Cost.

Specifications:

Measuring range           0~300°C, −20~300°C, 0~500°C, −20~500°C,

−50~300°C, 0~800°C, 600~1500°C, 0~1500°C etc.

Resolution                            Typical 0.1°C

Precision       −50~−20°C: ±3.0°C; −20~500°C: Greater of ±2℃ or  2% of reading.

500~1500°C:  ±2.0% of reading

Repeatability                   ±1°C of full Temperature range.

Spectrum Response                     8～14μm

Distance : Spot Ratio             3:1,  5:1,  8:1,  10:1,  12:1.

Operating Temperature                  0～50°C

Storage Temperature                   −20～85°C

Relative Humidity             10~90% without coagulated dew

Response Time                       100～500ms

Emissivity              Default 0.95 (0.01~1.00 adjustable as requested)

Object Distance                         0~15m

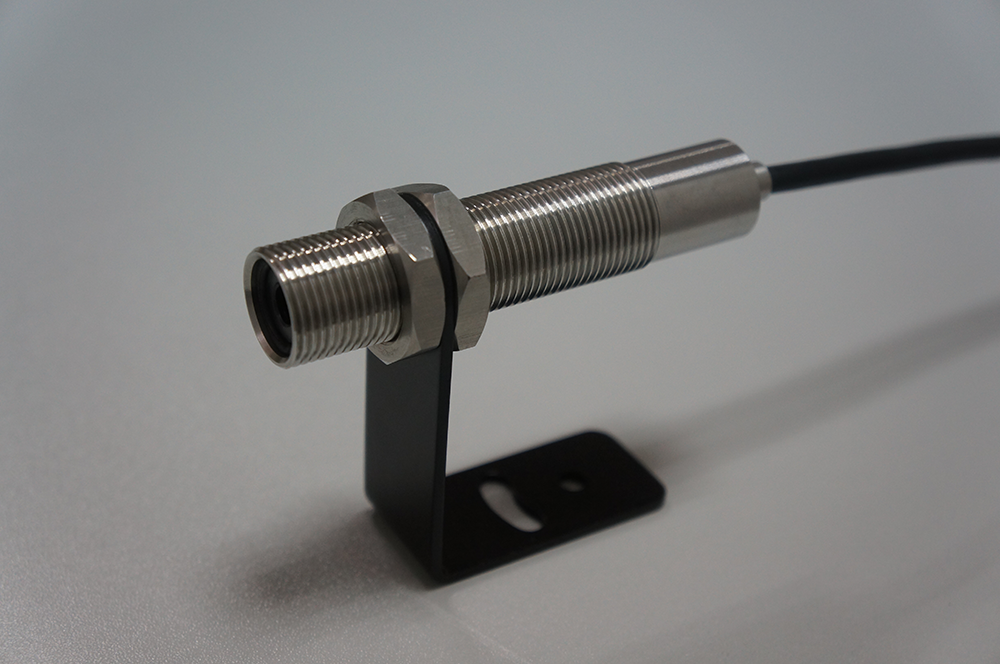

Housing          Max.size D:Φ20mm (M20 screw thread L:69.5mm), L:92.5mm；

                                 Outlet tail D:Φ6mm, L:7.1mm；

Equipped with 2 nuts 31.2x6mm and 1 Mounting Bracket; IP65 protection.

Power Supply   +5VDC, +7.5VDC, +9VDC, +12VDC, +24VDC or +18～+30VDC; and

+2.7VDC, +3VDC or +3.3VDC ( just while Output is SPI, UART, PWM, or I2C）.

Analog Output    Standard: 4~20mA with “Current Transmitterof 4~20mA Output”;

Optional: 0~5V, 10mV/°Cetc.；Optional “Digital Display & Control meter”.

Digital Output                 SPI, RS485, RS232, UART, I2C, PWM ;

Optional "Temperature Data Collection & Communication Software".
