Characteristics:

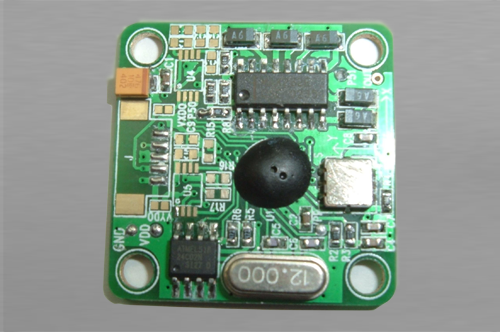

HBISM-D01 is a low-cost and high-performance dual axis inclination sensor module:

1. High precision, quick response, low cost, high repeatability and various power supply.

Clients could also order this unit with customized specifications;

2. A full digitized inclinometer Module with advanced MEMS (Micro-Electrical-Machine

System) tilt sensor and with powerful performance MCU;

3. Factory calibrated with temperature compensation within full scale, Full linearization

Compensated;

4. Analog or digital output signals, and carry out flexible special design according to the

needs of users;

5. All calibrated data is stored in the EEPROM, no data loss due to power failure;

6. One “Nulling” button (hardware nulling) on the PCB; the zero point can also be reset by

PC ( software nulling ) to facilitate the maintenance of user system.

HBISM-D01 module is widely used in automobile four-wheel wheel alignment system, Mechanical Measurement, Industrial Platform, Oil Exploration, Surveying and Mapping, Military Industry, Ships, and many related fields that needed to measure the inclination or the levelness under gravity reference system.

Specifications:

Measuring Dimension                      Dual-axis

Measuring Range                            ±10°

Resolution                                  0.05°

Measuring Accuracy                      0.1° @ 25°C

Absolute Accuracy                      0.3° @ -10~65°C

Repeatability                                ±0.05°

Operating Temperature                    -20℃～80℃

Storage Temperature                      -30℃～80℃

Relative Humidity               0~95% RH without coagulated dew

Response Time                             ≤500ms

Analog Output                   0.5~4.5VDC, 2.5VDC @ 0°angle

Digital Output                     RS232(TTL/CMOS level) or I2C

Special Features      Nulling by software or hardware (RS232 type output only)

Anti-shock Ability                            500g

Power Supply                             +5VDC ±10%

Current Drain                               ≤10mA

Compatible Connector        Molex 53261-0590 and Molex 51021-0500.

Dimension                                30x30x15mm

Installation Type                           4xM3 screw
