Characteristics:

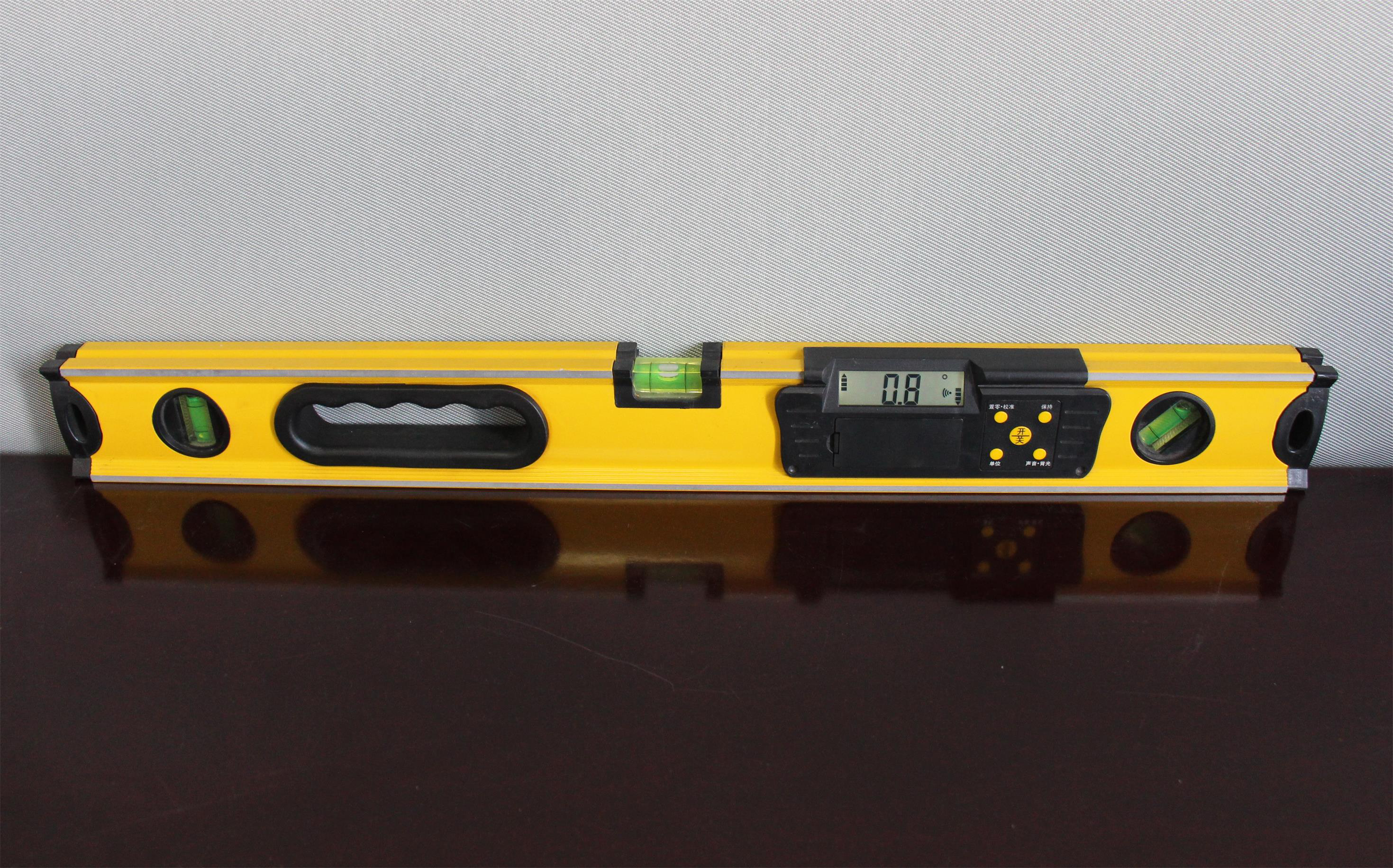

HBIN101 has the features of Full digital design, Advanced Acceleration Sensor, Advantaged MEMS & ASIC Technology, Factory calibrated with temperature compensation within full scale, Full linearization compensated, Wide Operating Temperature Range, Easy to Install and Maintain with Low Cost.

l On both sides of the large LCD display are arrows indicating the direction and degree of horizontal deviation;

l 0.0° and 90.0° special angle location beep tone indicating;

l Data display turn automatically , data hold function, easy read at any position;

l Angle data can be sent to a computer or other monitoring&recording equipment with RS232 interface;

l Calibration & Zero Setting anywhere, anytime if want;

HBIN101 is a measuring tools and instrumentation widely used in Road Engineering, Construction Works, Industrial Platform and many related fields.

Specifications:

Measuring range          0 ~ 360 ° (each quadrant shows 0 ° to 90 °).

Resolution                  Typical 0.1°(or 0.1%,１ｍｍ/M,１IN/FT).

Absolute Accuracy  Horizontal & Vertical(0°和90°)location: ±0.1°(@２５℃±３℃),

Else(1°～89°) location: ±0.2°(@２５℃±３℃).

Repeatability                    ±0.1° of Full Measuring Range

Temperature Drift                    ≤±0.2°(@0℃～40℃)

Operating Temperature                  0℃～50℃

Storage Temperature                   -20℃～80℃

Relative Humidity            10~90% RH without coagulated dew

Response Time                          ≤500ms

Stabilization Time                          ≤5s

Power Supply              Layer-built Alkaline Battery :6F22, 9V×1,

Continuous operating time:≥8hours.

Power Consumption               ≤100 mW (Backlight off)

Current Drain        When the buzzer does not sound: ≤10mA (Backlight off),

When the buzzer sound: ≤18mA (Backlight off),

Shutdown current: ≤6uA

APO Time                    Default: 5 minutes (Customizable).

Finished Shell              Max.size L:600mm,H:65mm,T:30mm;

Yellow paint on aluminum alloy surface.

Module Shell  Max.size L:52mm,H:58mm,T:22mm; Black plastic injection molding.

PCB Size    L:116mm, W:53.5mm, T:1.6 mm(single fiberglass board),for reference
